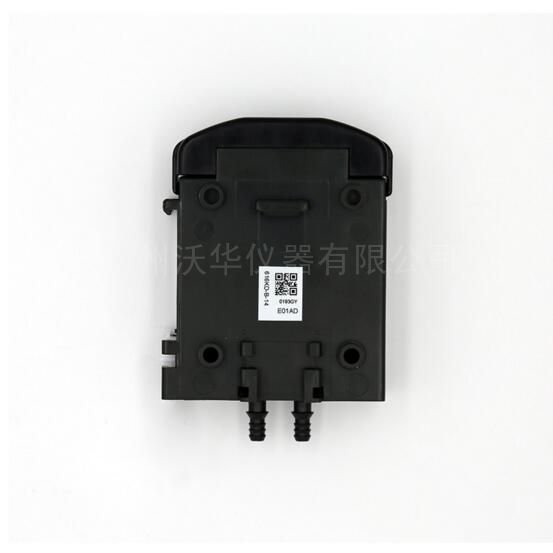

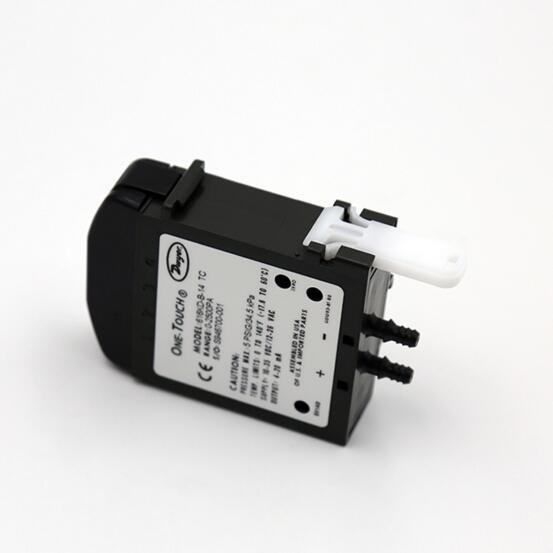

美国Dwyer差压变送器616KD-B-13（替代原616C-2）
详细信息
| | 品牌：DWYER/德威尔 | | 型号：616KD-B-13 | | 加工定制：否 | |
| | 类型：微差压变送器 | | 测量范围：1.5 kPa | | 测量介质：气体 | |
| | 精度等级：1% | | 输出信号：4-20 mA | | 电源电压：24 V | |
| | 工作温度：-17.8~60 ℃ | | | | | |
Series 616KD
Differential Pressure Transmitter
One-Touch庐 Digital Push-Button Calibration Technology, ±0.25, ±1, or ±2% Accuracy
TheSERIES 616KDDifferential Pressure Transmitters with One-Touch庐 Digital Push- Button Calibration Technology are designed for simplicity, making them the ideal choice for installers and maintenance professionals. These instruments not only alleviate cumbersome turn pots typically found in most transmitters, but eliminate entirely the need to span the instruments during calibration. With single digital push button, both ZERO AND SPAN are calibrated properly, nothing else is required. No additional reference pressure sources or separate calibration devices are necessary.
产品规格：
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Accuracy: 616KD-A: ±0.25% FS; 616KD-B: ±1% FS, 616KD-C: ±2% FS.
Stability: ±1% FS/year.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Pressure Limits: 2 psig (ranges 5" w.c. or lower); 5 psig (ranges 10 to 40" w.c.).
Thermal Effect: 616KD-A: ±0.02% FS/°F; 616KD-B: ±0.04% FS/°F; 616KD-C: ±0.06% FS/°F, includes zero and span.
Power Requirements: 4 to 20 mA output: 10 to 35 VDC (2-wire) or 12 to 26 VAC (4-wire); 5 V output: 10 to 35 VDC (3-wire) or 12 to 26 VAC (4-wire); 10 V output: 13 to 35 VDC (3-wire) or 12 to 26 VAC (4-wire).
Output Signal: 4 to 20 mA or option with field selectable 0 to 10, 0 to 5, 2 to 10, 1 to 5 V.
Zero and Span Adjustments: Push button.
Loop Resistance: 4 to 20 mA output (DC): 0 to 1250 Ω max. Rmax = 50(VpsDC -10) Ω; 4 to 20 mA output (AC): 0 to 1200 Ω max. Rmax = 50(1.4 VpsAC -12) Ω; Voltage output: 5K Ω minimum.
Current Consumption: 24 mA max.
Electrical Connections: Screw-type terminal block.
Process Connections: Barbed, dual size to fit 1/8"& 3/16" (3 mm and 5 mm) ID rubber or vinyl tubing.
Enclosure Rating: NEMA 1 (IP20).
Mounting Orientation: Vertical with pressure connections pointing down.
Weight: 1.8 oz (51 g).
Agency Approval: CE.
Compensated Temperature Range: 20 to 122°F (-6.67 to 50°C).
Warm Up time: 20 minutes.
选件和附件：
ACCESSORIES:
A-618 - Protective terminal cap.
A-489 - 4" 303 SS straight static pressure tip with flange.
SCD-PS - 100 to 240 VAC/VDC to 24 VDC power supply.
A-360 - Aluminum DIN rail
A-302F-A - 303 SS Static pressure tip with mounting flange, for 3/16" I.D. rubber or plastic tubing. 4" insertion depth, includes mounting screws
选型表：
| EXAMPLE |
616KD |
A |
00 |
AT |
Series 616KD-A-00-AT, Differential Pressure Transmitter, 4-20mA, range 0-1" w.c., with aluminum tag |
| SERIES |
616KD |
|
|
|
Differential Pressure Transmitter |
| ACCURACY |
|
A
B
C |
|
|
0.25% FS Accuracy
1.0% FS Accuracy
2.0% FS Accuracy |
| RANGE |
|
|
00
01
02
03
04
05
06
07
08
10
11
12
13
14
15
50
51
52
53
54
55
56 |
|
0-1" w.c.
0-2" w.c.
0-3" w.c.
0-5" w.c.
0-10" w.c.
0-15" w.c.
0-20" w.c.
0-25" w.c.
0-40" w.c.
0-250 Pa
0-500 Pa
0-750 Pa
0-1250 Pa
0-2500 Pa
0-5000 Pa
0 to ±1" w.c.
0 to ±2" w.c.
0 to ±5" w.c.
0 to ±10" w.c.
0 to ±250 Pa
0 to ±500 Pa
0 to ±750 Pa |
| OPTIONS |
|
|
|
AT
COC
FC
NIST
TC
V |
Aluminum Tag
Certificate of Conformance
Factory Calibration
NIST Certification
Terminal Cover
Voltage output 0 to 5, 1 to 5, 0 to 10, 2 to 10 VDC (field selectable) |
